A Yagi Antenna is a directional antenna designed to direct radio frequency energy in a particular direction. It is generally used where focused transmission or reception is required rather than wide-area coverage. Smart Electronics Communication (SEC Antenna) designs and manufactures antennas for HF, VHF, UHF, TETRA, microwave and S-band communications. Its product range includes Yagi Antenna and Circular Polarized Yagi Antenna.

When selecting an appropriate antenna for professional wireless communication systems, factors such as frequency, gain, polarization, radiation pattern, mounting conditions and communication-link requirements should be considered.

What Is a Yagi Antenna?

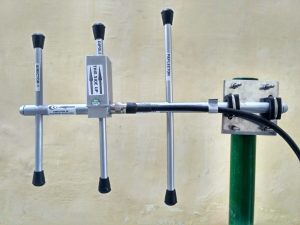

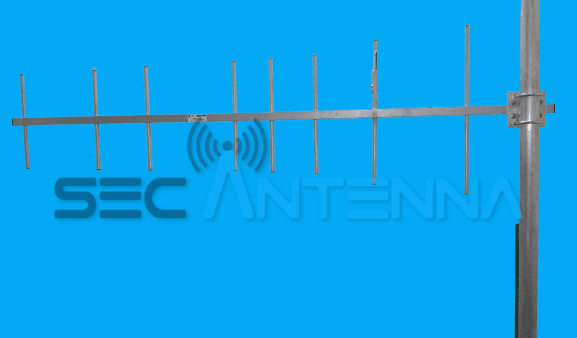

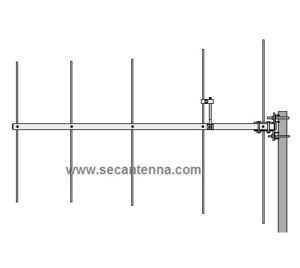

A Yagi Antenna is a directional antenna consisting of multiple elements positioned along a supporting boom. Its directional properties help focus radio-frequency signals toward a preferred direction.

 therefore be used for communication links where the transmitting and receiving points have a defined direction. SEC Antenna lists Yagi products for different frequency ranges and provides antenna configurations based on operating-frequency and gain requirements.

How Does a Yagi Antenna Work?

The elements of a Yagi Antenna work together to produce directional radiation. The driven element is connected to the feed, while the passive elements influence the radiation pattern and help direct the antenna’s energy toward the desired direction.

This makes a Yagi Directional Antenna suitable for point-to-point communication and other applications requiring directional signal transmission or reception. Actual performance depends on factors such as operating frequency, element configuration, gain, installation height, polarization and surrounding conditions.

What Are the Benefits and Applications of a Yagi Antenna?

Applications of a Yagi Antenna vary according to frequency, system configuration and installation requirements. They can include:

• Point-to-point communication links
• VHF/UHF transmission
• Radio communication systems
• Satellite communication
• Wireless data transmission
• Monitoring and receiver systems
• Specialized radio-frequency communication

SEC Antenna manufactures and markets dual-stacked Yagi products designed for highly directional point-to-point analog and digital communication links. Its Circular Polarized intended for VHF/UHF satellite-band applications, including weather satellite communication links.

What Specifications Should You Look For?

When choosing , several specifications should be evaluated.

• Frequency Band
  The antenna should be suitable for the operating frequency of the communication equipment. SEC’s Yagi range includes models covering different VHF, UHF and microwave bands.


• Gain
  Gain indicates how effectively an antenna concentrates energy in a particular direction. Different Yagi configurations can provide different gain levels depending on the model and frequency range.


• Polarization
  Polarization should correspond with the communication system. Depending on the application, antennas may use vertical, horizontal or circular polarization.


• Radiation Pattern
  A Yagi Directional Antenna is selected when focused directional coverage is required. The radiation pattern should be considered together with the required communication distance and installation environment.


• Mounting Requirements
  Antenna height, mounting hardware, orientation, wind conditions and available installation space can affect deployment.


• Yagi Antenna Solutions from SEC Antenna
  SEC Antenna designs and provides professional antenna solutions for wireless voice and data communication. Its website lists products including , Dual Stacked Yagi Antenna and Circular Polarized.
  The company states that antenna feeds can be tuned according to customer operating-frequency and gain requirements, with custom connectors, paint colors and finishes also available.

An SEC Yagi data sheet, for example, specifies a 410–465 MHz frequency range, 12 dBi gain, 50-ohm input impedance, directional radiation pattern, and vertical or horizontal polarization.

Conclusion

When a communication system requires directional transmission or reception, a can be considered based on the system’s technical requirements. Frequency, gain, polarization, radiation pattern, mounting conditions and communication-link requirements should all be evaluated when selecting a suitable model.

SEC Antenna provides Yagi Directional Antenna configurations for professional communication applications, including frequency- and application-specific requirements.-
