HF Broadband Multiwire Antenna
| # | Model | Frequency | Bandwidth | Conductor Material | Download | Enquiry |
| 1 |
S1HF S1HF-SS |
3 – 30 MHz | 27 MHz |
Copper Stainless Steel |
 |
 |
| 2 |
S2HF S2HF-SS |
1.8 – 30 MHz | Full Band |
Copper Stainless Steel |
|
|
| 3 |
S3HF S3HF-SS |
1.8 – 30 MHz | Full Band |
Copper Stainless Steel |
|
|
| 4 | STHF-8010 | 3.5/7/14/21/28 MHz | Multi-Band | Copper | |
|
| 5 | SHF-M3 | 1.6 – 30 MHz | Full Band | Aluminium(whip) | |
|
| 6 | SVMHF | 3 – 30 MHz | Full Band | Aluminium | |
|
| 7 | SVM6HF | 3 – 50 MHz | Full Band | Copper | |
|
HF Broadband Antenna details:
INTRODUCTION:
HF Broadband Multi-wire Antenna covers 1.8 – 30 MHz frequency band. HF Broadband multiwire antenna is usually used by the army / military or police. It is used in communication purposes such as scanning, full band monitoring, receiving and transmitting voice & data within the HF band. It can be mounted horizontally or as inverted “V”. We recommend at least 10 m height or better for HF broadband antenna installation.
CONSTRUCTION:
We have each model of HF broadband multiwire antenna in two different conductor materials:
1. Insulated Copper.
2. Anti corrosive Stainless Steel Grade-304.

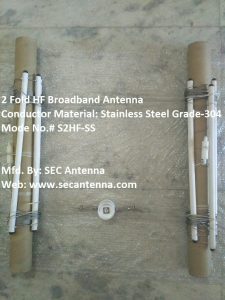

Model#S2HF is two folded hf broadband dipole antenna. S2HF consists two folded wires as a dipole material.
Model#S3HF is three folded HF broadband dipole antenna. It consists three folded wires as a dipole material.
The antenna is composed of folded wire dipole with one RF transformer/balun. As an input connector UHF(F) or N-F connector are normally used. The most famous is UHF-female connector in this antenna. Two nylon ropes are supplied with the antenna for antenna installation on AE mast.
OPTIONAL ACCESSORIES:
1. For military / army deployment purpose, we offer our clients a carry bag of army green color.
2. 30 meter coaxial cable with weather proofing kit.
3. 36 feet long aerial mast with guy wires and all accessories. Model No #SAM36
4. For signal monitoring, we also offer Low Noise Amplifier.
5. For Inverted Vee type installation we offer two small light weight aerial mast and one 36 feet long AE mast along with complete accessories.
We would be pleased to supply HF Broadband Antenna with, customized connector or custom finish.
HF Broadband Multi-Wire Antenna
The HF Broadband Multiwire Antenna is ideal for communication systems that need wide frequency coverage and reliable HF performance. It can support transmit/receive applications requiring flexible frequency operation. Its multiwire design is a practical antenna choice for communication sites needing dependable coverage on several HF bands.
HF Broadband Performance
The HF Broadband Multiwire Antenna is suitable for broadband operation, eliminating the need to change antennas frequently when working on different frequencies. This makes it useful for communication systems where operational flexibility is important. A broadband antenna can be useful to ease installations as it can support multiple operating requirements with a single antenna arrangement.
The multiwire construction is particularly useful in HF communication applications requiring practical coverage over a broad frequency range. Depending on installation and system configuration, it can be used for fixed base stations, field communication, monitoring systems, and other professional radio applications.
Multiwire Dipole Design
HF Multiwire Dipole Antenna – An antenna composed of multiple wire elements permitting HF communication at various operating frequencies. This arrangement can allow multiband operation while keeping the antenna relatively simple in design.
The HF Broadband Multiwire Antenna is a potential choice when antenna versatility is a factor. Proper installation, mounting height, grounding, feed arrangement, and surrounding environment can affect actual antenna performance. The antenna should therefore be installed according to the requirements of the communication system and applicable technical specifications.
Broad Application Scope
The HF Broadband Multiwire Antenna can be well suited for various professional communication applications. It can be utilised in fixed stations, emergency communication systems, field communication networks, remote installations, government communication applications, and other HF radio setups.
In many cases, HF systems are chosen when communication requirements extend over large distances and infrastructure may not be readily available. The broadband antenna can offer operational convenience by enabling users to operate over multiple frequencies without changing the entire antenna arrangement for each frequency requirement.
Dependable Support for Communication
Antenna selection is an important part of overall system performance for professional radio communications. The HF Broadband Multiwire Antenna is a flexible solution for operators that want wide HF coverage and easy installation. The multiwire construction is well suited for applications where the dominant requirement is multiband communication capability.
The antenna is suitable for transmitting and receiving in appropriate HF radio systems. Performance will vary according to radio equipment, frequency, installation environment, antenna height, feed line, and site conditions.
Intended for Professional HF Systems
An HF Multiwire Dipole Antenna is useful when a communication setup requires multiple wire elements to accommodate different HF operating needs. The configuration allows flexibility in installations where frequency coverage and antenna placement must be considered together.
For those who need versatile support for HF communication, the HF Broadband Multiwire Antenna provides a useful combination of broadband operation and multiwire construction. The selection of the antenna depends on operating frequencies, available space for installation, radio power, mounting conditions, and the desired communication range.
SEC Antenna
SEC Antenna manufactures antenna solutions for professional communication needs, including HF applications. The company’s business is communication antenna products for specialised radio and wireless systems.
The HF Broadband Multiwire Antenna is designed for users looking for a flexible antenna solution for professional HF communication systems. With proper installation and system configuration, it can meet the transmit and receive requirements over the appropriate HF frequencies.
A key consideration for organisations and professionals developing reliable HF communication infrastructure is the selection of the right antenna. SEC Antenna provides communication antenna solutions for specialised applications requiring reliable radio connectivity and practical antenna performance.
