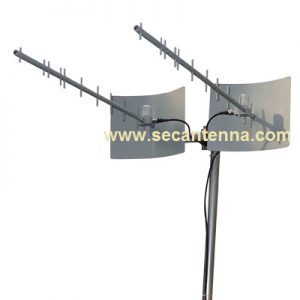

Dual stacked Yagi Antenna
| # | Model | Frequency | Bandwidth | Gain | Download | Enquiry |
| 1 | S2Y66G12 | 66 – 88 MHz | 5 MHz | 12 dBi |  |  |
| 2 | S2Y150G16 | 136 – 174 MHz | 6 MHz | 16 dBi | | |
| 3 | S2Y450G16 | 380 – 520 MHz | 10 MHz | 16 dBi | | |
| 4 | S2Y850G18 | 800 – 990 MHz | 70 MHz | 18 dBi | | |
| 5 | S2Y1450G18 | 1100 – 1750 MHz | 100 MHz | 18 dBi | | |
| 6 | S2Y2450G18 | 2150 – 2750 MHz | 100 MHz | 18 dBi | | |
These Dual Stacked Yagi Antennas are designed to operate in VHF, UHF, microwave(L & S) band. We tune these Antenna feed as per customer operating frequency band and gain requirement. The Dual Stacked Yagi Antenna is highly directional antenna used in point-to-point analogue and digital communication links. User can install both yagi antennas in any arrangement either vertically or horizontally. Two yagi antennas are stacked in such a way that the over all system gain increases up-to certain units. Install Dual Stacked Yagi Antennas at a minimum height of 25-30 feet above the ground level to get optimum performance.
Dual Stacked Yagi Antenna for High-Gain Directional Communication
A Dual Stacked Yagi Antenna is designed for applications where directional coverage, reliable signal reception, and improved antenna performance are important. By combining two Yagi antenna elements in a stacked configuration, this antenna arrangement can provide enhanced gain and a focused radiation pattern compared with a conventional single antenna setup. For communication systems that require stable and targeted RF performance, choosing the right antenna design is essential.
What Is a Dual Stacked Yagi Antenna?
A Dual Stacked Yagi Antenna consists of two Yagi antenna arrays arranged in a carefully engineered configuration. The stacking technique is used to improve directional performance while maintaining the characteristics required for RF communication applications. This makes the antenna suitable for systems where signal strength, directionality, and dependable communication are important considerations.
The design can be adapted according to the required frequency range and application. Proper spacing, alignment, and RF integration are important for achieving the intended performance.
Benefits of a High Gain Yagi Antenna
A High Gain Yagi Antenna is known for its directional characteristics and ability to concentrate RF energy in a particular direction. This makes it useful where the communication system needs focused transmission or reception rather than broad coverage.
When two Yagi antennas are stacked together, the configuration can provide improved gain and a more focused radiation pattern. Therefore be considered for applications involving long-distance RF communication, signal reception, telemetry, wireless systems, and other specialized communication requirements.
Applications of Dual Stacked Yagi Antenna
A Dual Stacked Yagi Antenna can be used in various professional RF and wireless communication applications. Depending on its frequency range and configuration, potential applications include point-to-point communication, telemetry systems, RF monitoring, signal reception, wireless communication infrastructure, and specialized outdoor communication systems.
For systems operating in demanding environments, antenna selection should consider frequency, gain, polarization, radiation pattern, mechanical configuration, and installation requirements. A High Gain Yagi Antenna can be particularly useful when the system requires a directional signal path.
Why Choose the Right Yagi Antenna Design?
Antenna performance depends on more than simply selecting a high-gain model. The operating frequency, required coverage area, polarization, installation location, environmental conditions, and communication distance all influence the appropriate antenna configuration.
A Dual Stacked Yagi Antenna can be selected when a system requires a combination of directional performance and enhanced gain. Correct installation and alignment are also important because even needs accurate positioning to deliver effective directional communication.
Dual Stacked Yagi Antenna for RF Systems
For professional RF applications, antenna reliability and configuration are important factors. Sec-Antena can provide antenna solutions designed around specific communication requirements. A Dual Stacked Yagi Antenna can be considered for applications where focused RF coverage and higher directional performance are required.
Before selecting an antenna, users should evaluate the operating frequency, gain requirement, polarization, mounting arrangement, connector configuration, and environmental conditions. This helps ensure that the selected antenna integrates effectively with the overall RF system.
A a practical choice for applications that require directional transmission and reception. When a stacked configuration is required, the Dual Stacked Yagi Antenna provides an engineered approach for improving directional RF performance.
For your specific application, Sec-Antena can help identify the appropriate antenna configuration based on your system requirements, frequency range, and installation conditions.
