800 – 2500 MHz patch panel Antenna

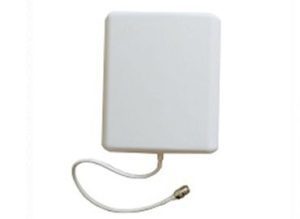

The 800 – 2500 MHz patch panel Antenna from SEC Antenna is designed for wireless communication systems that need directional signal coverage across selected cellular frequency bands. Manufactured by Smart Electronics Communication, model SPP0825G7 operates across 800–960 MHz and 1710–2500 MHz. Its panel design helps focus radio-frequency energy toward a target coverage area, making it suitable for compatible signal boosters, repeaters and wireless links.

Wideband Performance for Wireless Communication

The 800 – 2500 MHz patch panel Antenna supports multiple frequency ranges in one unit. This can reduce the need to install separate antennas for each supported band, provided the system uses compatible frequencies. Its directional radiation pattern can help system designers plan coverage for a target area.

The 800 – 2500 MHz patch panel Antenna is suitable for compatible cellular signal enhancement and selected wireless communication applications. Actual performance depends on placement, cable loss, surrounding structures and interference.

Key Features

The 800 – 2500 MHz patch panel Antenna offers vertical polarisation and listed gain values of 7/10 dB across its supported bands. Its horizontal beamwidth is 70°/60°, while its vertical beamwidth is 55°/45°. A front-to-back ratio of at least 15 dB supports directional coverage, and the listed VSWR is 1.5:1 or lower.

The 800 – 2500 MHz patch panel Antenna has a 50-ohm impedance and supports maximum input power of 50 watts. It uses an N-female connector, weighs approximately 0.5 kg and measures 21 × 18 × 4.5 cm. The mounting hardware supports installation on a pole with a diameter of 1–1.5 inches. SEC Antenna lists an operating temperature range of -40°C to 80°C. Verify specifications with the manufacturer before ordering or installation.

Technical Specifications

• Model: SPP0825G7

• Frequency range: 800–960 / 1710–2500 MHz

• Bandwidth: 160 / 790 MHz

• Gain: 7 / 10 dB

• Polarisation: Vertical

• Horizontal beamwidth: 70° / 60°

• Vertical beamwidth: 55° / 45°

• Front-to-back ratio: ≥ 15 dB

• VSWR: ≤ 1.5:1

• Impedance: 50 ohms

• Maximum input power: 50 watts

• Connector: N-female

• Dimensions: 21 × 18 × 4.5 cm

• Weight: Approximately 0.5 kg

• Operating temperature: -40°C to 80°C

Applications

The 800 – 2500 MHz patch panel Antenna is listed for compatible cellular signal boosters and repeaters, GSM 900/1800 MHz, and selected 2G and 3G systems. SEC Antenna also lists point-to-point links, point-to-multipoint systems, 2.4 GHz wireless bridges and wireless mobile internet signal boosting among its applications. Confirm that the exact frequency falls within the antenna’s supported ranges; it should not be assumed to provide continuous coverage across every frequency from 800 to 2500 MHz.

For reliable installation, mount the 800 – 2500 MHz patch panel Antenna securely and align it toward the intended coverage area. Use suitable coaxial cable and compatible connectors, keep cable runs as short as practical, and follow the equipment manufacturer’s guidance. Signal booster and repeater deployments must comply with applicable local regulations.

Why Choose SEC Antenna?

SEC Antenna designs and manufactures antennas for wireless data and voice communication. The 800 – 2500 MHz patch panel Antenna provides a directional option for projects that require coverage in its specified frequency bands. Its published electrical and mechanical details help integrators compare gain, beamwidth, impedance, connector type and mounting needs before selecting the 800 – 2500 MHz patch panel Antenna.

To discuss availability or technical compatibility, contact SEC Antenna with your target frequencies, equipment model and installation environment.
