Wide Band Discone Antenna
Smart Electronics Communication provide expertise in manufacturing the model series of Wide Band Discone Antenna with latest designs and advancement of technology . This antenna works efficiently in different frequencies .
| # | Model | Frequency | Bandwidth | Gain | Download | Enquiry |

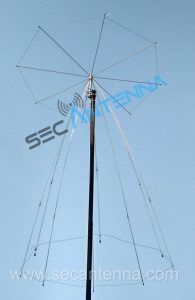

| 1. | SDC30-100 | 30 – 100 MHz | Full Band | 2-3 dBi |  |  |
| 2. | SDC50 | 30 – 1000 MHz | Full Band | 2-3 dBi | | |
| 3. | SDC50-2000 | 50 – 2000 MHz | Full Band | 2-3 dBi | | |
| 4. | SDC150 | 100 – 1300 MHz | Full Band | 2-3 dBi | | |
| 5. | SDC250 | 100 – 400 MHz | Full Band | 2-3 dBi | | |
| 6. | SDC350 | 300 – 3000 MHz | Full Band | 2-3 dBi | | |
| 7. | SDC25-2000 | 25 – 2000 MHz | Full Band | 2-3 dBi | | |
| 8. | SDC25-3000 | 25 – 3000 MHz | Full Band | 2-3 dBi | | |
We manufacture Discone Antenna for many frequency bands like HF VHF UHF and microwave bands like L-band, S-band.

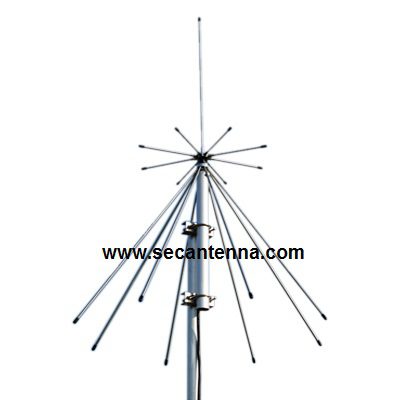

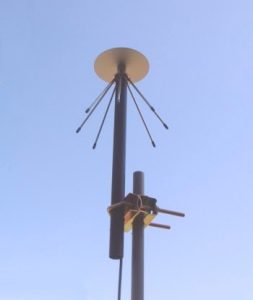

The Discone Antenna is manufactured using high-class Aluminium alloy or chrome plated Brass material and does not require any field tuning or adjustments. The antenna when packed, comes with Cone and Disc elements removed from the antenna body for ease of packing and shipment. The compact size of antenna allows easy handling and specially designed mounting hardware results in fast installation.
The all discone antenna models Brass and Aluminium prevents formation of “Signal Cells”, thereby eliminating inter modulation with in the antenna. It is specially designed for Omni directional. Due to it’s low VSWR as 1:2 over complete VHF and UHF operation band, this wide band discone antenna can be used as a transmitting and receiver antenna due to its high efficiency. To meet the broadband requirement of a base station SEC Antenna wide band Discone antenna. Discone antenna is made-up of 6.5 mm(approx) thick disc and cone elements of aluminium or brass it makes discone antenna highly robust to withstand rough weather. Antenna termination and feed cable lie enclosed inside the mounting pipe for complete weather protection.
All models are mounted at the roof height approx 25 feet above the ground to provide the maximum communication range and perfect signal coverage.
The Discone Antenna when packed comes with full mounting hardware of stainless steel.
SEC Antenna uses the very latest design technology and manufacturing methods to produce very good quality of Discone antenna, having following features:
Innovative design for unique quality of omni directional Discone antenna.
High gain and omni directional pattern of Discone antenna.
Low VSWR for the whole operating frequency band of Discone antenna.
High performance in worst environmental conditions due to its brass / aluminium alloy body.
Light weight aluminium alloy is used to manufacture omni directional Discone antenna.
Our antennas are designed to provide the best gain figures, for the requirements of the band and for the specific application where the antenna will be used.
We are pleased to supply these antenna with, customized connector, any specified paint colour or any custom finish as per customer request.
Our antennas are designed and manufactured to provide the best gain figures, for the requirements of the band and for the specific research application where the antenna will be used.
We are specialized in making antenna with efficient radiating properties .
We provide distinctiveness in various designs of antennas better than our contemporary competitors.
Discone Antenna For Military: The Ultimate Guide
In the realm of military communication and surveillance, precision and reliability are paramount. To achieve seamless communication, surveillance, and data transmission, military operations heavily rely on advanced technologies and equipment. Among the crucial components in this high-stakes game is the Discone Antenna. In this comprehensive guide, we delve into the world of Discone Antennas for military applications, shedding light on their design, functionality, advantages, and how they play a pivotal role in ensuring mission success.
Understanding Discone Antennas
What Is a Discone Antenna?
A Discone Antenna, short for “Disc One Antenna,” derives its name from its distinctive design. It consists of two main parts: a disc-shaped element and a cone-shaped element. This unique configuration allows it to cover a wide range of frequencies, making it highly versatile and ideal for military applications.
How Does a Discone Antenna Work?
The Discone Antenna operates on the principle of broadbanding, enabling it to receive and transmit signals across a broad spectrum of frequencies. Its design ensures that it captures a wide range of electromagnetic waves, making it an indispensable tool for military communication and surveillance systems.
Military Applications
Communication
In the military, effective communication is paramount for mission success. Discone Antennas excel in this aspect by providing omnidirectional coverage, ensuring that signals can be transmitted and received from any direction. This capability is crucial for maintaining constant contact between military units, even in challenging terrains.
Surveillance and Reconnaissance
When it comes to surveillance and reconnaissance, Discone Antennas offer exceptional performance. Their ability to capture a wide spectrum of frequencies enables military personnel to intercept and analyze various signals, including radio transmissions, radar, and other critical data sources. This invaluable information contributes significantly to decision-making processes during military operations.
Electronic Warfare
Discone Antennas are also essential components in electronic warfare systems. Their broadbanding capabilities allow military forces to jam or interfere with enemy communications effectively. This disruption can prove to be a game-changer on the battlefield, giving the military the upper hand in critical situations.
Advantages of Discone Antennas in Military Applications
Wide Frequency Range
One of the standout features of Discone Antennas is their ability to operate across an extensive frequency range. This versatility ensures that military personnel can adapt to various communication and surveillance needs without the need for multiple antennas.
Omnidirectional Coverage
The 360-degree coverage provided by Discone Antennas ensures that military units can maintain communication links regardless of their orientation relative to each other. This is particularly beneficial in fast-paced and dynamic combat scenarios.
Durability
Military operations often occur in harsh environments, where equipment must withstand extreme conditions. Discone Antennas are designed to be rugged and durable, ensuring they can perform reliably in challenging circumstances.
Ease of Installation
Discone Antennas are relatively easy to install and set up, making them a practical choice for military deployments. Their versatility and adaptability mean they can be deployed swiftly to meet the demands of evolving situations.
Conclusion
In the world of military communication, surveillance, and electronic warfare, the Discone Antenna stands as a stalwart pillar of reliability and performance. Its unique design, wide frequency range, and omnidirectional coverage make it an indispensable tool for military personnel across the globe. Whether in the heat of battle or during critical reconnaissance missions, the Discone Antenna plays a pivotal role in ensuring mission success.
As the military continues to evolve and adapt to emerging threats and challenges, the Discone Antenna remains a steadfast ally, providing the connectivity and intelligence needed to stay one step ahead. In the world of military technology, the Discone Antenna truly reigns supreme.
