Circular Polarized Yagi Antenna SCY400G10
Circular Polarized Yagi Antenna SCY400G10 is purely designed to to provide a frequency range of 380 to 430 MHz with direct ground protection.
Specification:
| Model: SCY400G10 | ||
|---|---|---|
| Electrical Specification | ||
| Frequency Band | 380-430 MHz | |
| Bandwidth | 10 MHz | |
| Gain | 10 dBi | |
| Polarization | Circular LHCP / RHCP | |
| Radiation pattern | Directional | |
| Beam-width | 50° | |
| Front to Back Ratio | 18 dB | |
| VSWR | ≤1.5:1 | |
| Impedance | 50 ohm | |
| Maximum Input Power | 250 watt | |
| Lightning Protection | Direct Ground | |
| Mechanical Specification | ||
| Material | Aluminium Alloy | |
| Mounting Hardware | Stainless Steel | |
| Weight | 4 Kg (8.8 lb) | |
| Wind Rating | 180 Km/Hr | |
| Length | 1600 mm | |
| Support Boom Diameter | 25 mm (Al-Square pipe) | |
| Elements Diameter | 12 mm (Al-Round Pipe) | |
| Radiating Material | Brass | |
| Mounting Pipe Diameter | 51 mm (2″ inch) | |
| Connector | N-female | |
| Environmental Specification | ||
| Operating Temperature | -30° C to 70° C | |
| Humidity | 0 to 95% RH | |
Antenna Report:

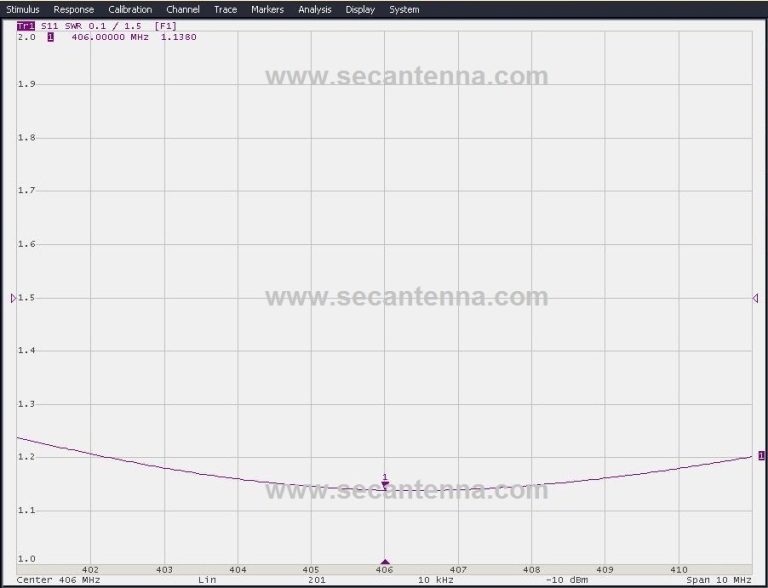

| VSWR | |
|---|---|
|
The circular polarized yagi antenna SCY400G10 has circular polarization. It also has a directional radiation pattern with an impedance of about 50 ohm .It has maximum input power of 250 watts.
It has a mounting software made up of high quality stainless steel . The radiating material used in this device in of outstanding quality of brass.
We are pleased to supply these antenna with, customized connector, any specified paint colour or any custom finish as per customer request.
Our antennas are designed and manufactured to provide the best gain figures, for the requirements of the band and for the specific research application where the antenna will be used.
We are specialized in making antenna with efficient radiating properties . We provide distinctiveness in various designs of antennas better than our contemporary competitors.
In addition to the above mentioned features providing with the best of our services is our first and foremost priority. we believe in the advancing antenna technology and are obliged to improvise the electronic antenna field with the latest captures of creativity.Our motto is the consumers satisfaction and providing the ideal antenna summed up with the advancement of technology.
