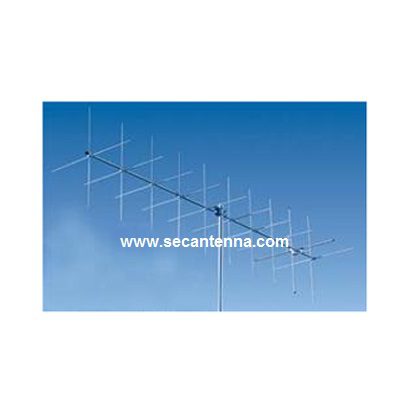

Circular Polarized Yagi Antenna SCY137G10

Circular Polarized Yagi Antenna SCY137G10 is purely designed to to provide a frequency of 137 MHz with direct ground protection.

Specification:
Model: SCY137G10
Electrical Specification
Frequency Band 137 MHz
Bandwidth 5 MHz
Gain 10 dBi
Polarization Circular LHCP / RHCP
Radiation pattern Directional
Beam-width 50°
Front to Back Ratio 18 dB
VSWR ≤1.5:1
Impedance 50 ohm
Maximum Input Power 250 watt
Lightning Protection Direct Ground
Mechanical Specification
Material Aluminium Alloy
Mounting Hardware Stainless Steel
Weight 5 Kg (11 lb)
Wind Rating 180 Km/Hr
Length 1800 mm
Support Boom Diameter 25 mm (Al-Square pipe)
Elements Diameter 12 mm (Al-Round Pipe)
Radiating Material Brass
Mounting Pipe Diameter 51 mm (2″ inch)
Connector N-female
Environmental Specification
Operating Temperature -30° C to 70° C
Humidity 0 to 95% RH
Antenna Report:

VSWR

The circular polarized yagi antenna SCY137G10 has circular polarization. It also has a directional radiation pattern with an impedance of about 50 ohm .It has maximum input power of 250 watts.

It has a mounting software made up of high quality stainless steel . The radiating material used in this device in of outstanding quality of brass.



We are pleased to supply these antenna with, customized connector, any specified paint colour or any custom finish as per customer request.

Our antennas are designed and manufactured to provide the best gain figures, for the requirements of the band and for the specific research application where the antenna will be used.

We are specialized in making antenna with efficient radiating properties .

 We provide distinctiveness in various designs of antennas better than our contemporary competitors.

In addition to the above mentioned features  providing with the best of our services is our first and foremost priority. we believe in the advancing antenna technology.  Also we are obliged to improvise the electronic antenna field with the latest captures of creativity.Our motto is the consumers satisfaction and providing the ideal antenna summed up with the advancement of technology.

 Smart Electronics Communication is obliged to provide you with the best of our services . Excellence prevails at your doorstep with smart Electronics Communication . We manufacture and create distinctive antenna engarded with prevalent features and characteristics.  Connecting you with the revolutionary digital world in the hectic strife , improvisation and innovation in the antenna technology is one of our ideals .

We make sure to equip you with antennas personally designed to meet your requirements at the most . Technical and digital adequacy is appropriately significant in this world where communication is the threshold.

Similarly, ensuring to make you well acquainted with the ongoing revolutions in the antenna technology , we create most noteworthy designs and certainly provide the best quality.In addition to the demand we receive in the broad domains of data and communication, subsequently wifi conduction and signal transmission is equally dominant in the era of high speeding internet data steaming and furthermore .

Most importantly, we make available a great variety of high functioning antennas of the most notably trustworthy quality and that too at very affordable prices and certainly at your convenience. Secantenna creates individualized antenna as per your requirements with different colors and various frequency ranges . We prove our brand distinctiveness by availing you with excellent services and after that standing firmly by you to provide consumer satisfaction . Our products are mandatorily constructed with highly refined materials to eradicate any kind of technological error or resistance.

Above all , we are empathetic to your needs and requirements. On the other hand , we assist all your technical needs regarding the antenna technology . We are a reincarnation in the emerging sector of signal conduction and transmission and data transfer via antennas .

In conclusion, Smart Electronics Communication are pioneers in manufacturing and supplying the best quality antennas .Likewise,we uphold great brand value and distinctiveness.  Consequently, because of our expertise in the respective field we create and provide the best materials tin comparison to our contemporary competitors. So, if you desire quality and performance then what are you waiting for? Contact us !!
